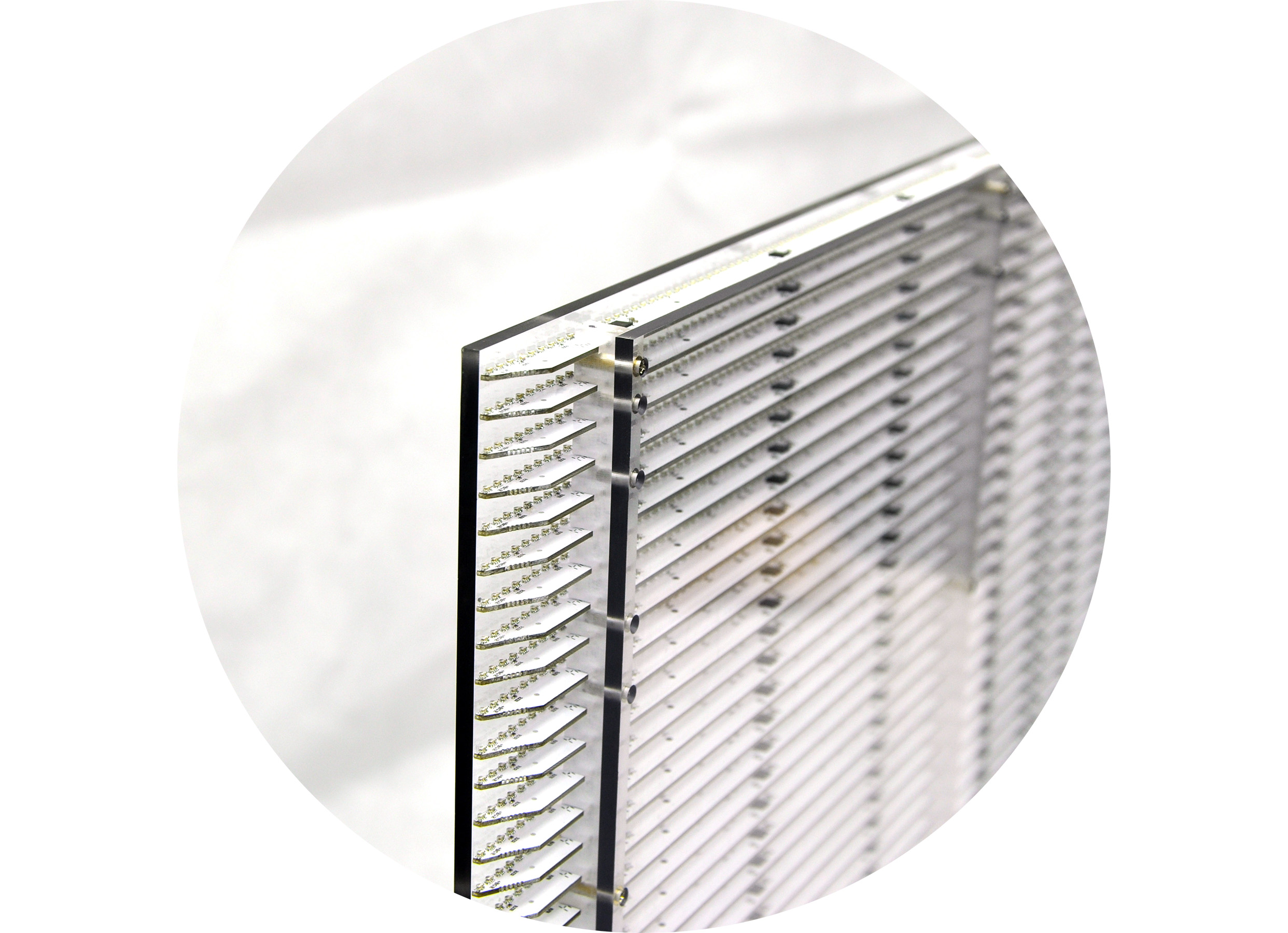

易于維護
只需更換LED燈條即可(ke)輕松進行維(wei)護(hu)

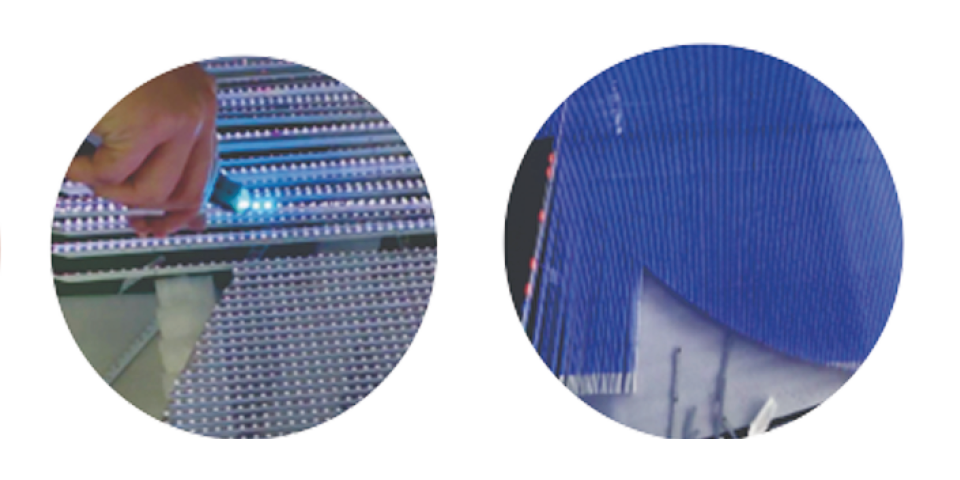

自由切割技術
M-Shine側發光透(tou)明LED除(chu)了標準尺(chi)寸(cun)外，還可以通過自由切(qie)割技(ji)術定制成不(bu)同的形(xing)狀。

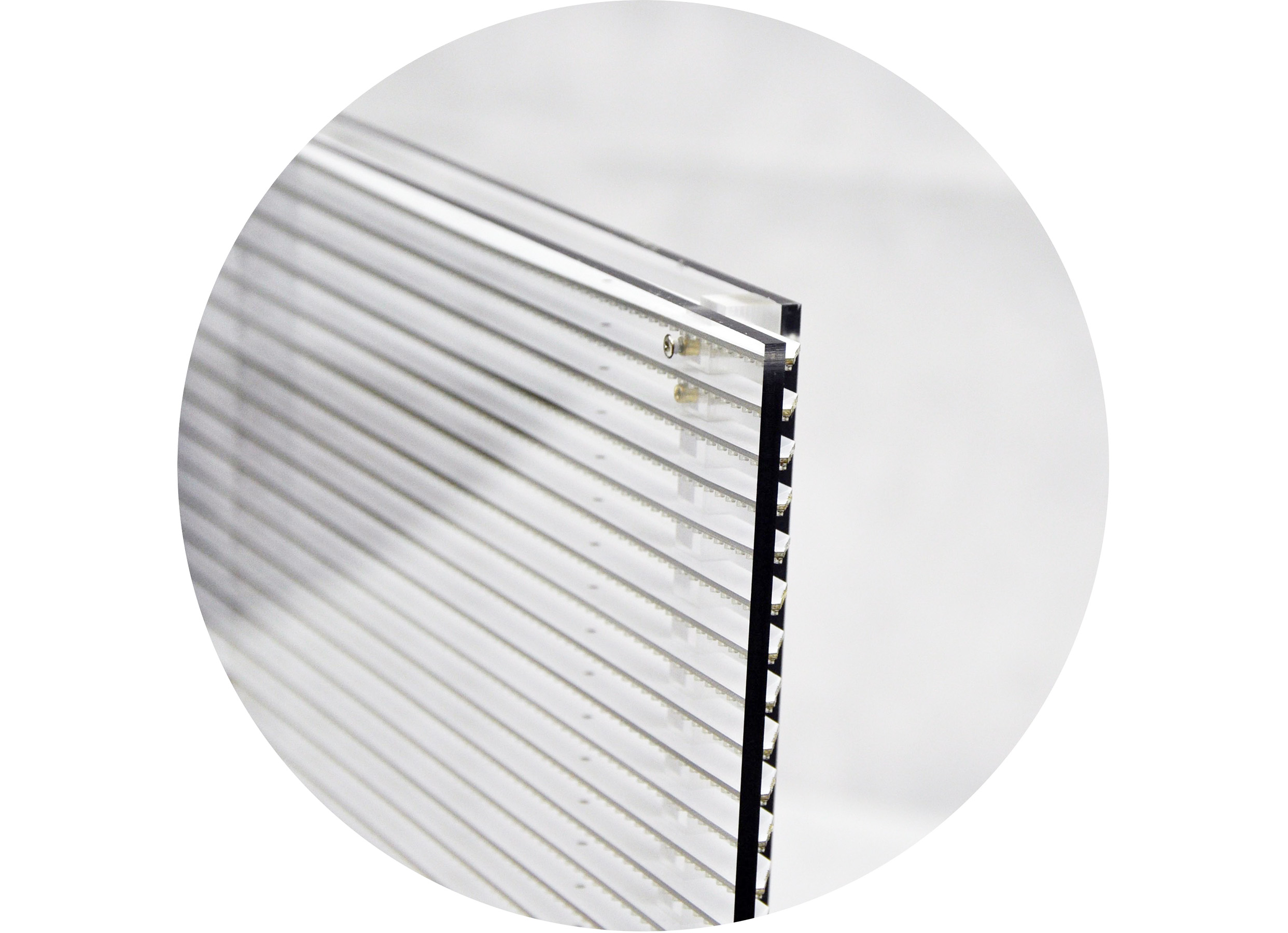

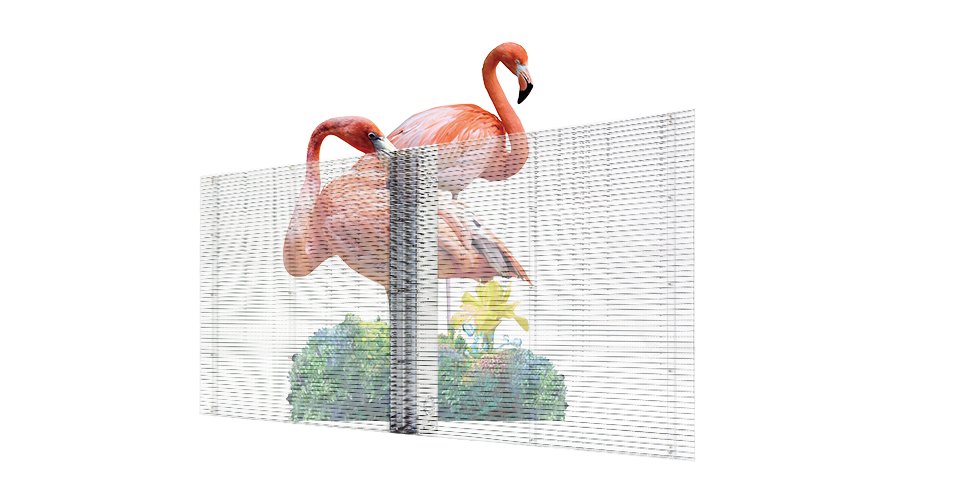

超高透明度
側發光設(she)計，透光率高(gao)達(da)87%，亮度(du)高(gao)達(da)5500nits，帶來極致視覺享受
超廣視角
160°超廣視角(jiao)，輕松捕捉完美顯示效(xiao)果

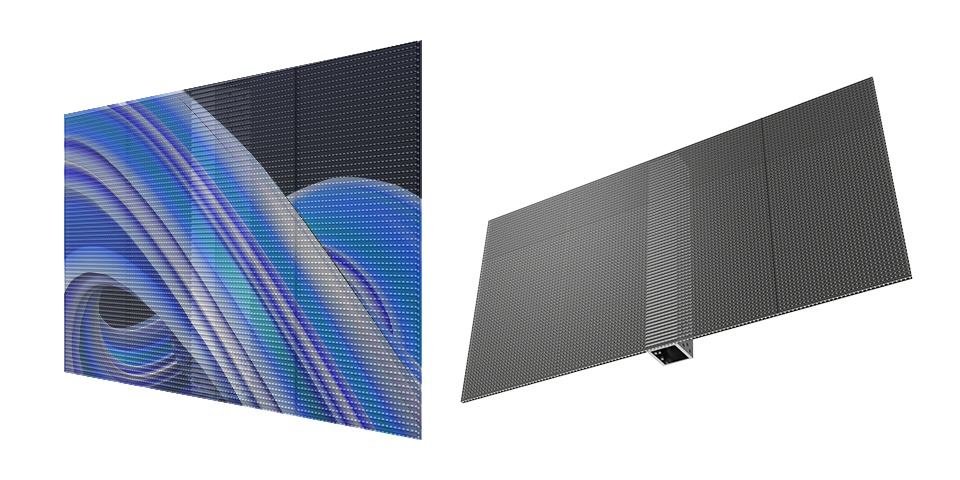

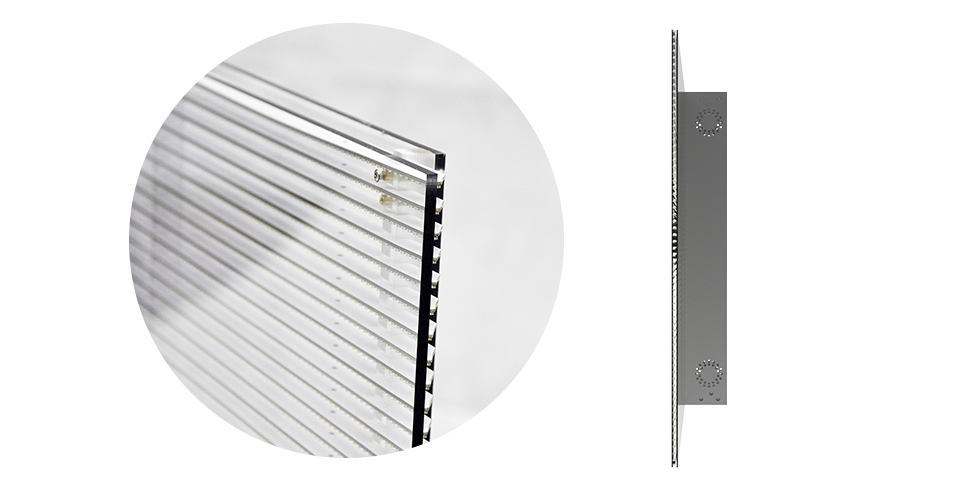

單面PC/雙面PC/無PC蓋設計可選
多(duo)種PC蓋設(she)計方案選擇，滿足(zu)不同需(xu)求
Crystal Series - Free cutting side emitting transparent LED Pixel Pitch(mm) 3.9*7.8mm 7.8*7.8mm 10.4*10.4mm Pixel Density(dots/㎡) 32768 16384 9216 Brightness(cd/㎡) 5000cd 1200cd 5000cd 1200cd 5000cd 1200cd Cabinet Size(mm) 1000*500 or customized, can be free cutting into any shape Cabinet Resolution(dots) 256*64 128*64 96*48 Panel Maximum Power(W) 500W 400W 500W 400W 500W 400W Panel Average Power(W) 300W 120W 300W 120W 300W 120W Max.Power Consumption(W/㎡) 1000w 800W 1000w 800W 1000w 800W Transparency Rate 87% 85% 87% Viewing Distance(m) 4m 8m 10m Driving Method 1/4 scan 1/4 scan 1/2 scan Pixel Composition 1R1G1B Operating Input Voltage(V) 5V LED Driving Method Constant Current Gray Scale 16 bits Brightness Adjustment 256 Brightness Levels Refresh Rate 3840Hz Refresh Frame Frenquncy 60HZ Maintenance Way Rear Service Ingress Protection IP31 Weight(kg/㎡) 16KG Continuous Use Time >72h Life Span 100,000h MTBF >10,000h Blind Spot Rate <0.01% Operating Temperature -20℃～+50℃(Below -20 degrees could be customized) Operating Humidity Indoor 10%～60%
透明屏
首頁透明屏
Crystal水晶系列

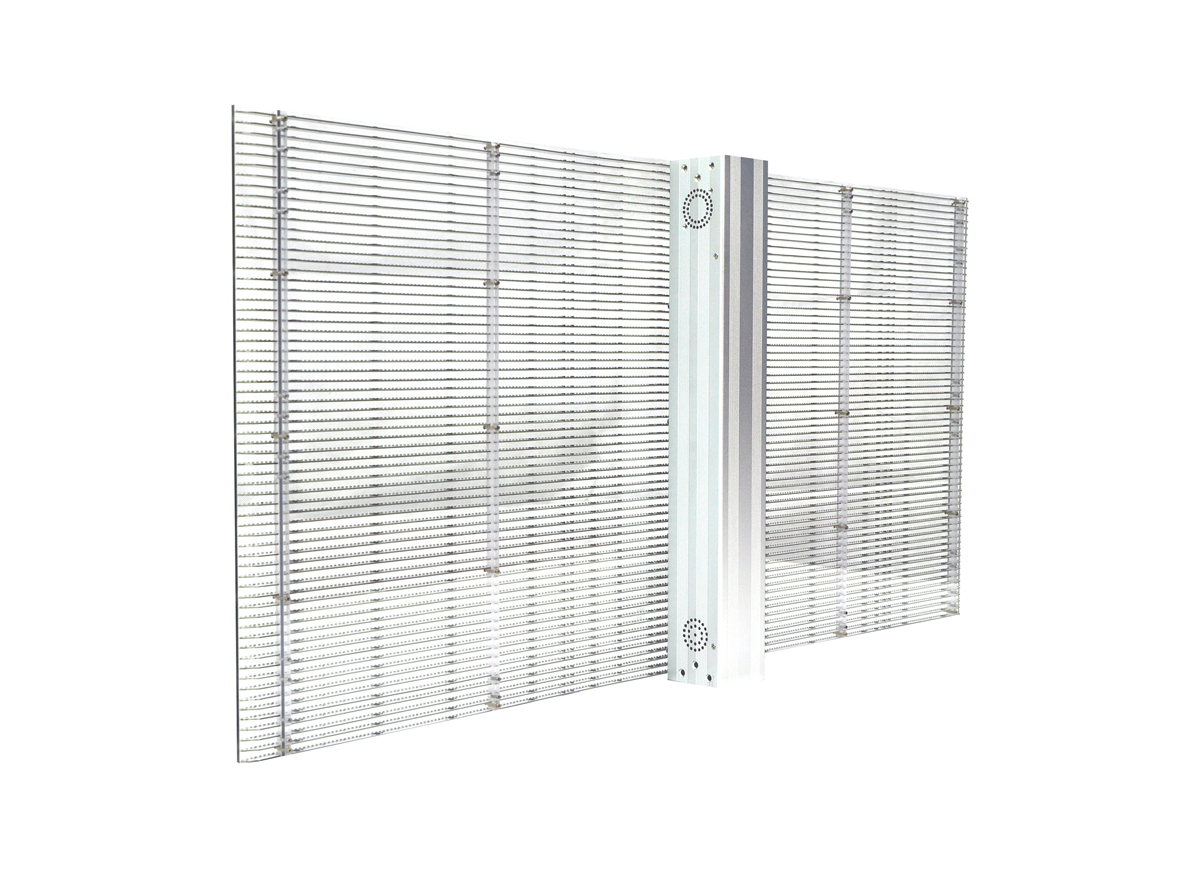

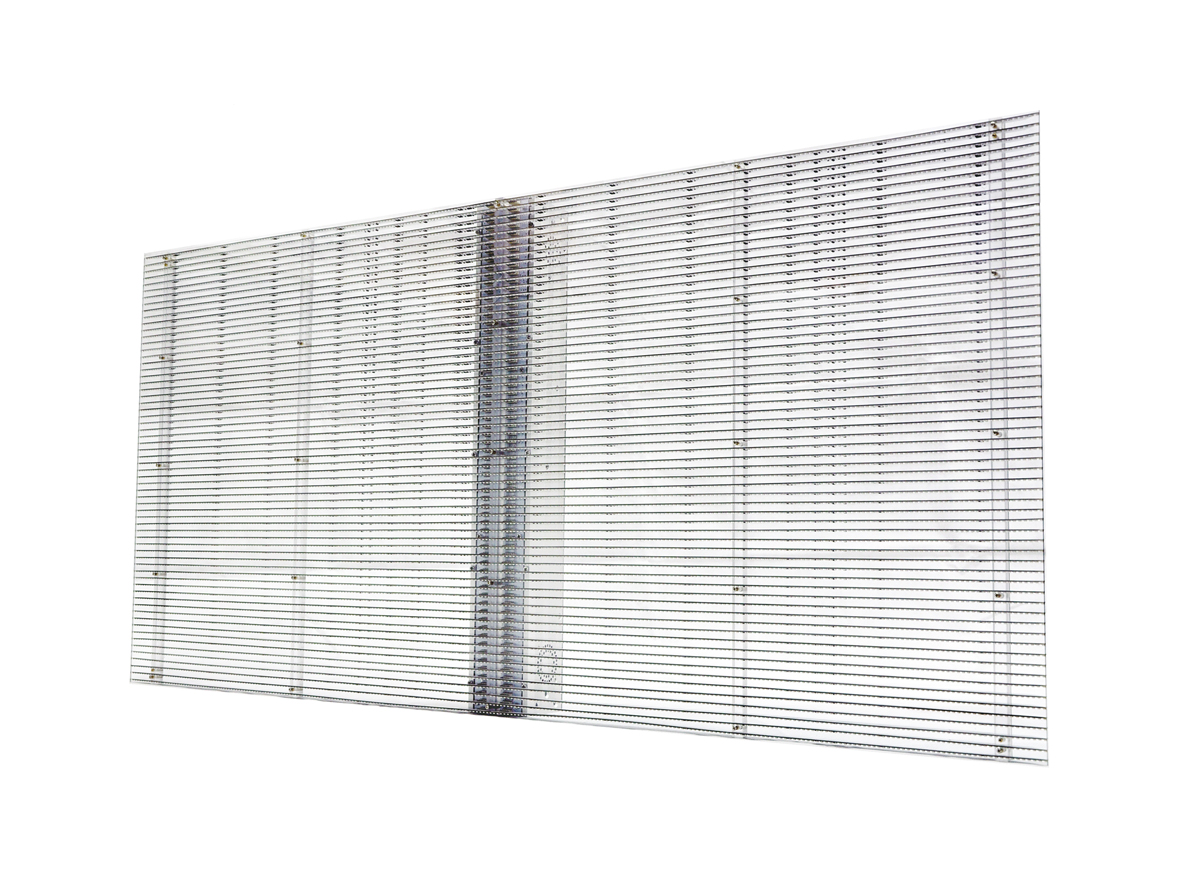

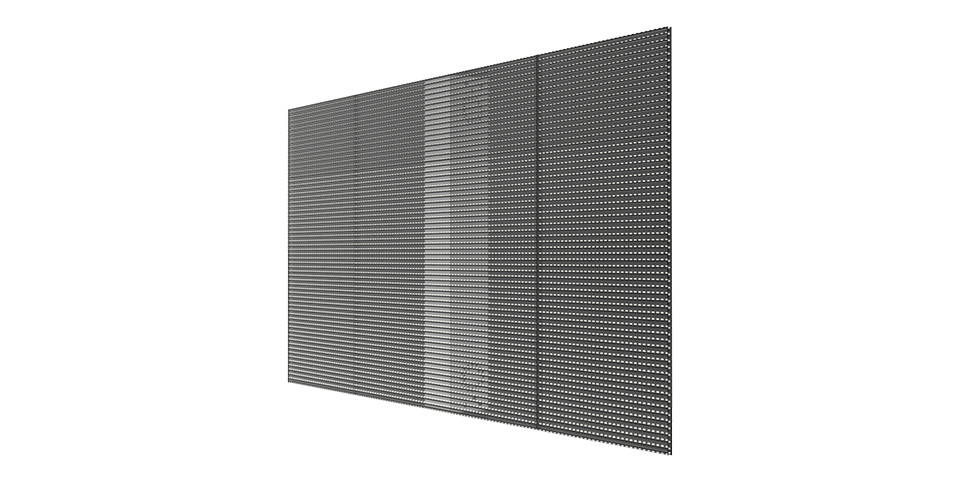

自由剪裁側發光LED透明屏
尺(chi)寸：1000x500mm/ 1000x1000mm / 自(zi)由剪(jian)裁尺(chi)寸
像素間距：P3.91-7.81/ P7.81-7.81/ P5.2-10.42
通透率可達87%
輕巧纖薄
亮度可達(da)5500nits/㎡
應用領域：購物中心、連鎖店(dian)、舞臺裝飾(shi)、廣告媒(mei)體(ti)、藝(yi)術中心、展(zhan)廳等
